Detect infrared radiation from wavelength 8μm to 14μm, and convert it into thermographic images using differences in heat, making it visible regardless of lighting conditions. Thermal camera is widely used in applications such as perimeter security and over-heating detection.

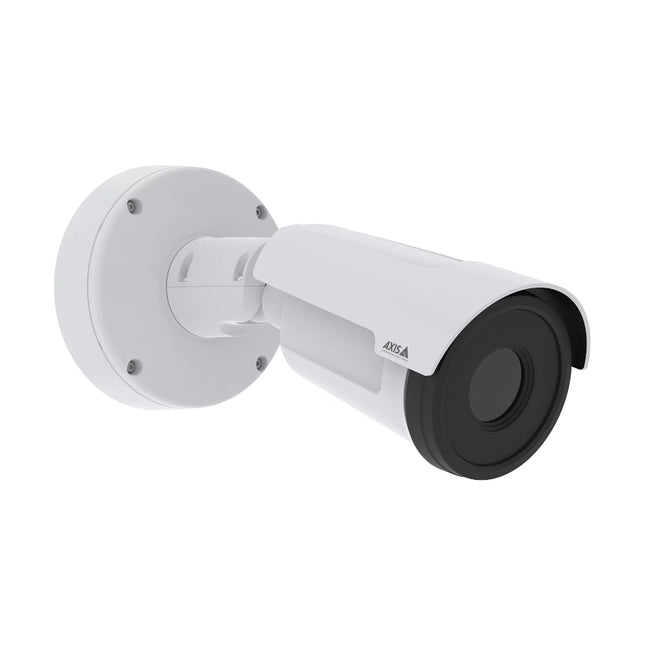

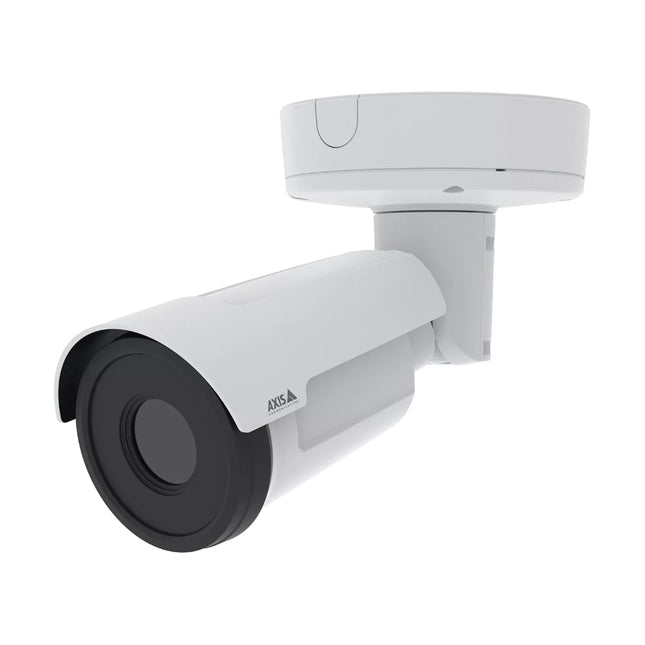

AXIS Q1972-E 10mm 30FPS Outdoor Thermal Camera, Wall & Ceiling Mount with Edge Vault
The AXIS Q1972-E 10mm 30fps Outdoor Thermal Camera delivers high-resolution thermal imaging (640×480) for reliable detection and verification around the clock, regardless of lighting or weather conditions. Equipped with a 10mm lens offering a 63° horizontal field of view, it’s ideal for short to mid-range surveillance applications.
This robust camera includes AXIS Edge Vault, a hardware-based cybersecurity platform that safeguards the device and protects sensitive information from unauthorized access. It also supports AI-based analytics, including AXIS Motion Guard, Fence Guard, and Loitering Guard, enabling proactive surveillance and reducing false alarms.
Designed for challenging environments, the camera boasts an IP66/IP67 and IK10-rated housing, ensuring resistance to dust, water, and impact. Electronic Image Stabilization (EIS) ensures smooth video even in unstable conditions. With support for Power over Ethernet (PoE) and local storage via microSD card, installation is streamlined and flexible.
Features
Reliable high-resolution thermal detection 24/7
Four lens alternatives
Support for AXIS Perimeter Defender
Built-in cybersecurity with Axis Edge Vault
Compact, robust, and halogen-free;
Included Technology
For intrusion detection
AXIS Fence Guard
Line-crossing detection
Edge-based video analytics
Multiple profiles for extra flexibility
Perspective tool for fewer false alarms
Bounding box alarm overlay
AXIS Motion Guard
Smart motion detection
Video motion detection
Edge-based video analytics
Multiple profiles for extra flexibility
Perspective tool for fewer false alarms
Bounding box alarm overlay
AXIS Video Motion Detection
Edge-based video analytics
Multiple profiles for extra flexibility
Preinstalled at no extra cost
AXIS Loitering Guard
For detecting loiterers
Motion- and time-based triggers
Edge-based video analytics
Multiple conditions and profiles
Perspective tool for fewer false alarms
Bounding box alarm overlay
AXIS Speed Monitor
Visualize radar data and get actionable insights
Make roads safer by enabling informed decisions
Visualize vehicle speeds
Trigger alarms, video recording, and more
Export data as a CSV-file for further processing
Publishes data via MQTT protocol
More Information
AXIS Q1972-E Datasheet
